HG Series Guillotine Shears

Name: HG Series Guillotine Shears
Brand: Genuo
SKU: 189132481

GENUO has rich production experience and technology in shearing cutting machines,we began to produce the simplest hydraulic metal sheet cutter many years ago, and now we provide hydraulic metal cutting machines manufactured in our world-class manufacturing facilities. Through continuous innovation and solution orientation, our existing shears around the world have made some suggested adjustments.Both swing beam type and guillotine type plate shears can bring you simple and efficient sheet metal cutting.In recent years, various cutting machines for metal sheet are popular. But we have not stopped the pace of innovation. The new generation of hybrid low energy consumption and noise CNC plate shears will be one of your indispensable choices.

Send Inquiry

Product Introduction

Guillotine Shearing Machine

Standard Equipment	Optional Equipment
■ ESTUN E21S NC control	□ E200PS/ CybTouch 8/ DAC-360T CNC control
■ Shilin stepping motor frequency converter	□ Sheet support system for thin sheets
■ Back gauge with roll guide and ball screw	□ Energy saving main servo motor pump system
■ SIEMENS main motor, Schneider electric	□ Moveable controller panel,Wireless foot pedal
■ Sunny pump,Rexroth hydraulic valve	□ Hydraulic oil cooling and heating system
■ EMB ferrule type pipe connector,NOK sealing rings	□ Automatic blade gap adjustment device
■ Roller bearings on the front support table	□ Front angle gauge and side gauge
■ Sheet sliding system and front support arms	□ Light safety system for finger protection
■ Collapsible guardrail finger protection	□ 4~40mm thickness,1.6~8M length optional

CNC Controller


E21S(ESTUN)	E200PS(ESTUN)
Backgauge control; Control ordinary motors or inverters; Intelligent positioning; Dual programmable digital output; Workpiece count; 40 program storage, Each program has 25 steps; Unilateral positioning;Yield function; One-key backup and restore of parameters; Metric system.	CAN bus control X axis sevo; Shear control;Color LCD HD display; digital output;40 program storage, each program has 25 steps; Unilateral positioning;Dual programmable Built-in cutting time, retreat delay; One-key backup and restore of parameters; Full-function online diagnosis, real-time alarm prompt Reserve a safe, supporting material interface; Metric/English;Chinese-English.

CybTouch 8 G(CYBELEC)	DAC-360T (Delem)
High-contrast touchscreen, with vivid colors.Simple pages, large keys, clear display with all the information the operator needs. Intuitive and user-friendly interface. Complete programming of parts in seconds.Quick set up of the machine with theEasyCut page. Contextual help and waming pop-up.	Panel based housing;Bright LCD screen; Back / front gauge control; Retract function; Cutting angle and gap control; Stroke length limitation; Manual movement of all axes; Force control;Sheet thickness measurement;Retum to Sender function; Sheet support.

General Instructions

The guillotine shear designed with European style monoblock welding structure to fully ensure the strength and rigidity of the machine.

The advanced integrated hydraulic system and three-point supporting rolling guide rail can adapt to the shearing of different materials

and thicknesses. The electric adjustment of the upper and lower blade edge clearance and the accurate back gauge system make shearing

more convenient, rapid and accurate.

Four rectangular blades ensure extremely long service life.GENUO's guillotine shears, which have the advantages of stable and reliable

operation, low noise, low energy consumption and fast speed, bring stable profits to the enterprise.

Hydraulic Hold downs

Shear Blades

Hydraulic Hold downs

Shear Blades

Built-in spring structure,where

the lower part with special

materal gasketstoad leing

trace line On aluminum alloy

or other sensitive material .

High Precision Ball Screw，Made using special

alloy steel according to the customer's needs:

material to be cut, holes & hardening.

suitable to guarantee reliability & wear resistance.

The machine can be equipped with 9CrSi,

6CrW2Si and SKD-11 all steel shear blade.

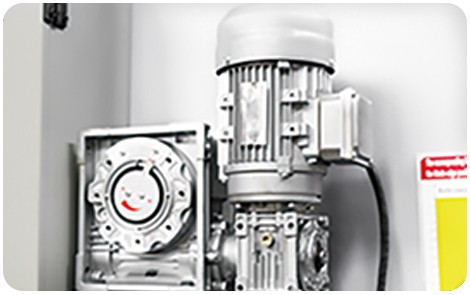

Light Barrier Protection	Fast Blade Gap Adjustment

Exquisitely Back Gauge

Exquisitely Back Gauge
- Fast and high accuracy	The unique and novel ball screw linear guide
- Reliable movement	structure back-gauge ensures high positioning accuracy.
- Adjustment from each point	Adjustable beam guiding rule and synchronous
- Resistance to crash	transmission structure, stable and reliable .
- Maintenance free
