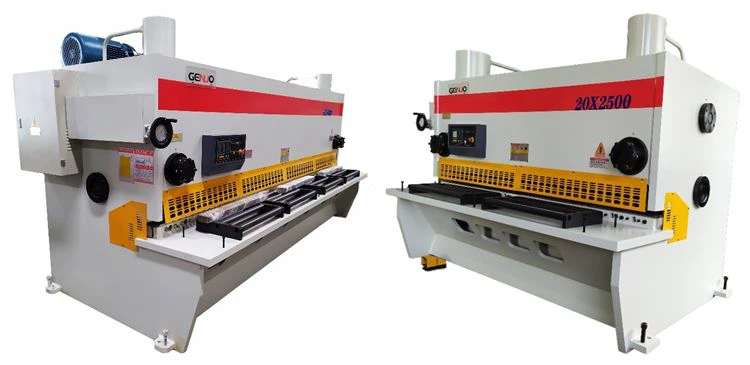

QC11y Sheet Metal Plate CNC Hydraulic Swing Beam or Guillotine Cutting Mechanical Shearing Machine
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction for cnc hydraulic press brake machine, cnc shearing machine, small shearing machine. With the growth of customer base, our scope is also expanding. By taking advantage of the core manufacturing and comprehensive services that we have accumulated over the years, we hope to become a first-class company with global competitiveness. We always face every consumer with a sincere heart, and with more surprises and touches, let you enjoy an extraordinary comfortable experience.
Shearing Machine
The frame structure of the shearing machine adopts all-steel welding; the four-corner and eight-sided right-angle guide rails have high precision, good rigidity and hydraulic preloading. The hydraulic system adopts two-way plug-in integrated valve, and can be equipped with stroke digital display, photoelectric protection device and mobile workbench. The shearing machine has double-action function of upper slider and lower hydraulic pad, and the working pressure stroke can be pressed within the specified range. The process requires adjustment, and the operation is simple and centralized using buttons.

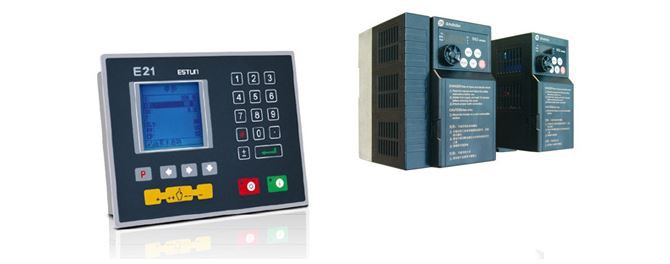

Optional Controller ESTUN E21+ Shihlin Converter E21+ Shihlin converter control via bus communication, wiring is simple, performance is good, block and back gauge can be positioned rapidly and accurately. Time relay is built in, partial logic function is realized. It is featured with low cost and high efficiency. |
|

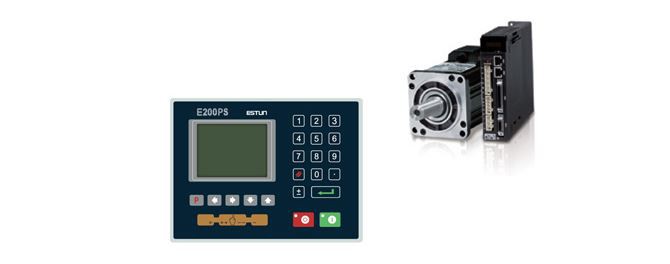

| ESTUN E200PS, China The E200PS with Color HD LCD display、both Chinese and English language options, a display programming parameters, faster and more convenient programming. CAN bus technology, servo control X, A-axis, high control accuracy, resolution up to 0.001; simple to install wiring, improve system reliability. Built blade clearance, cutting stroke, concessions and other control functions delay, according to the actual need to set the parameters of the gap, cut away concessions and other real-time control. With self-diagnosis and real-time alarm functions, debugging and maintenance more convenient. Reservation security interface for easy expansion. |

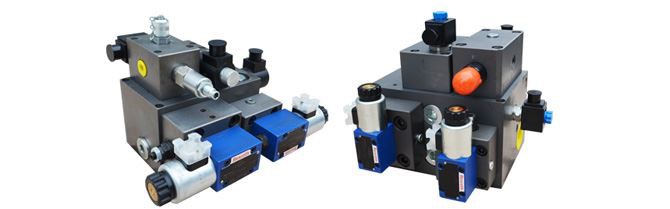

Superior Hydraulic System Integrated hydraulic system, quick response. The low failure rate enables the machine to operate safely, efficiently and stably. The full range of standard is equipped with galvanized cold drawn pipes and German card sleeve pipe joints. Compared with the welding of rubber and seamless steel pipes, the risk of oil leakage can be reduced by 50%. And can extend the service life. |
|

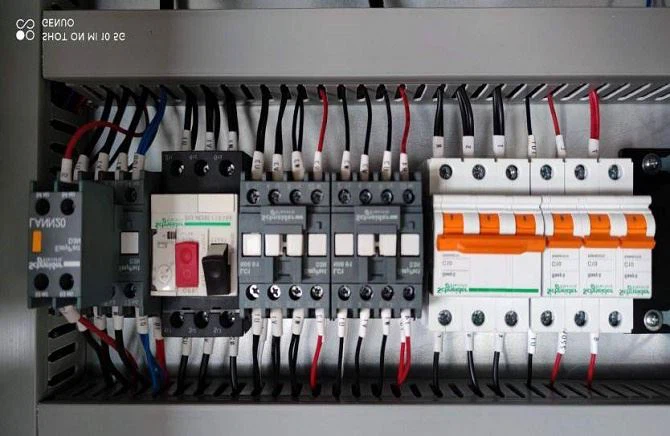

| Stable Electrical Cabinet Durable French Schneider Electric ensures the stable operation of the machine. Reasonable line connection and layout greatly reduce the failure rate. It also protects the operator and all parts of the machine. Optional servo and driver to improve the positioning accuracy of the backward (X) axis. |

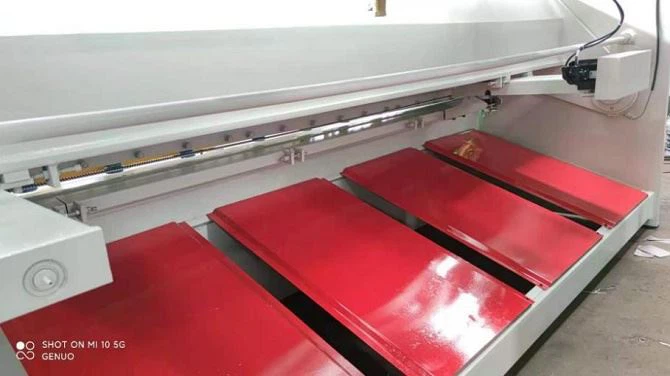

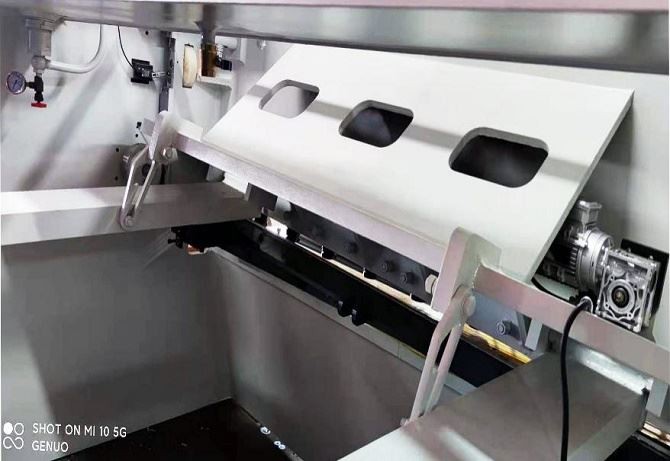

High Precision Back-Gauge Adjustable beam guiding rule and synchronous transmission structure, stable and reliable. Optional lifting mechanism structure to cut the work piece out of back gauge range. When cutting thin and wide metal plates, pneumatic support device can be selected. Increased positioning range makes cutting more efficient and accurate. |
|

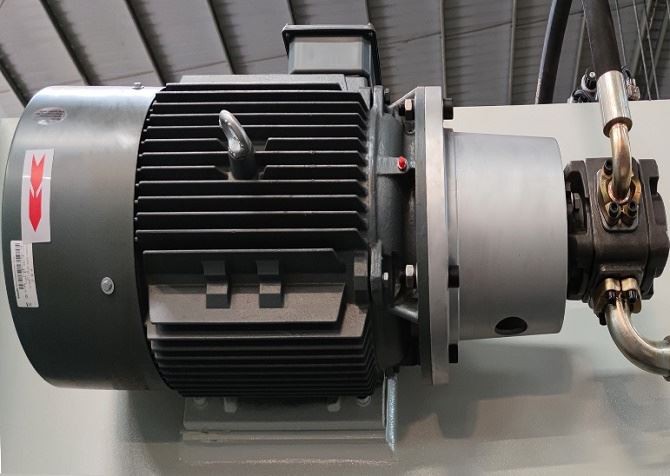

| Low Noise Power System Adopting German Siemens main motor and American SUNNY gear oil pump to ensure the service life of the machine and improve the working efficiency of the machine At the same time, the special coupling device also greatly reduces the noise of the machine during operation |
Dedicated Foot Switch South Korea KACON pedal switch improves the service life and operating sensitivity. The emergency stop, up and down control parts make the shearing machine operate safer and easier. It can also be equipped with multi-function joystick Z1, Z2 axis, R axis manual control. |
|
We are committed to QC11y Sheet Metal Plate CNC Hydraulic Swing Beam or Guillotine Cutting Mechanical Shearing Machine development, production and promotion, so that we can continue to improve our market share in the fierce competition. Our mission is to integrate reliable solutions with innovative and precise scientific concepts. We take the establishment of a national brand as our mission and show more Chinese power on the global stage!
