Tolerance analysis Steps: How to determine sheet metal tolerances and perform analysis
Sheet metal tolerance refers to the permissible deviation of sheet metal finished product in size or performance. It is an important aspect of the manufacturing process as it ensures that the final product correctly meets the necessary specifications and functions. Tolerance refers to the acceptable range of values for a specific size or feature, and the tolerance range is determined according to the design requirements and manufacturing capabilities. If the size or performance of the sheet metal product is outside the tolerance range, it may not fit properly or function as expected.
Tolerance analysis steps:
Tolerance analysis is a critical part of any manufacturing process, determining the acceptable deviation from the nominal value of any product parameter or dimension. A proper understanding of tolerance analysis can help produce high-quality products that meet the required specifications while reducing manufacturing costs and increasing efficiency. Here are some basic steps to perform a tolerance analysis:
1. Define design requirements: The first and most important step is to establish design requirements, including product characteristics, performance expectations, and other key aspects that need to be considered during the manufacturing process.
2. Determine tolerance: According to the design requirements, determine the tolerance limit of each size or parameter. These limits specify acceptable deviations from the nominal values.
3. Choose the right tools and techniques: Several tools and techniques are available for tolerance analysis, such as statistical process control (SPC) and computer-aided design (CAD) software. You should determine the most appropriate approach based on the complexity and complexity of your design requirements.
4. Perform an analysis: Once you have all the necessary inputs, perform an analysis to assess the impact of each tolerance on the performance of the final product.
5. Determine key parameters: Determine the parameters that have the greatest impact on the performance of the final product. During the manufacturing process, you should pay attention to these parameters.
6. Optimize the design: Once the key parameters have been determined, try to optimize the design to improve performance and reduce manufacturing costs. This step is essential to ensure that you produce high quality products that meet the required specifications.
In summary, tolerance analysis is an essential step in any manufacturing process to ensure that the final product meets design requirements and performance expectations. By following these basic steps, you can perform accurate and effective tolerance analysis, optimize designs, and produce high-quality products that meet the required specifications.
How to determine sheet metal tolerances?
Sheet metal tolerances are divided into two categories: dimensional tolerances and position tolerances.
Dimensional tolerances refer to acceptable variations in characteristics such as length, width and thickness of sheet metal parts. Position tolerances deal with an acceptable change in position relative to another feature. Tolerance levels are determined by a variety of factors, including the manufacturing process, the complexity of the design, and the purpose of the sheet metal. For example, sheet metal parts used in door hinges require a higher level of position tolerance than those used in decorative trim parts.
Sheet metal tolerances play a crucial role in ensuring that sheet metal machining is carried out efficiently, as most sheet metal parts have precise specifications that must be met to ensure a high level of functionality.
The part tolerance refers to the size of the part that has no tolerance indication or does not belong to the dimension chain in the design and manufacture and does not directly affect the fit performance.
In mechanical design, the reasonable choice of part tolerance is very important to the dimensional fit of parts. If the part tolerance is not selected correctly, the part design dimension chain will be incomplete, and for parts with lower accuracy requirements, general tolerances can be used in the tolerance labeling process.
However, for parts with high precision requirements, tolerances should be specified in detail in the mechanical design to ensure that they meet actual needs.
The size, shape, position and other requirements of a part are determined by its function. The selection of tolerance levels should meet the design and quality requirements of the parts, while taking into account the processing cost, product performance, function, service life, fuel consumption and other factors.
Before determining sheet metal tolerances, customer provided design requirements and specifications or industry standards must be considered. These requirements may include dimensions, surface finish, and material properties, and the design engineer must carefully examine these specifications and define allowable variations for each parameter.
In addition, the manufacturing process itself plays an important role in determining sheet metal tolerances. Techniques such as cutting, bending, and welding cause changes in the size and geometry of sheet metal parts, and it is critical to consider the capabilities and limitations of manufacturing equipment to establish realistic and achievable tolerances.
There are several ways to determine sheet metal tolerances, including statistical analysis, empirical judgment, and actual measurements.
Statistical analysis involves analyzing sample numbers to determine the expected range of variation. Judgments based on experience are common in industries where product tolerances have been established. In this case, experienced workers can use their knowledge and expertise to determine whether the product is within acceptable tolerances. Actual measurement refers to the physical measurement of the size or performance of the finished product to ensure that it is within an acceptable range.
Sheet metal tolerance analysis is generally performed at the design stage using computer aided design (CAD) software. It involves specifying tolerance requirements for each size or feature and then simulating the manufacturing process to ensure that the final product meets those requirements. Tolerance analysis can help identify any potential problems or areas where manufacturing may need to be adjusted to achieve the desired level of quality.
In summary, sheet metal tolerances are an important aspect of the manufacturing process, ensuring that the final product meets the necessary specifications and functions. Tolerance refers to the permissible deviation of the finished sheet metal product in size or performance, which is determined according to the design requirements and manufacturing capacity. Tolerance analysis is carried out during the design phase to ensure that the final product meets the desired level of quality.
How to perform tolerance analysis?
There are two kinds of tolerance analysis methods: one and three dimensions.
The one-dimensional method does not require the purchase of software, so the cost is lower, while the three-dimensional method costs more.
In order to accurately analyze sheet metal tolerances, many methods can also be used.
First, develop a detailed inspection plan, listing specific tolerances and inspection methods to be used. The plan also specifies the sampling size, frequency and acceptance criteria for parts.
A common method is to use measuring tools such as calipers, micrometers, and gauges to measure the actual dimensions of manufactured parts, and then compare these measurements to design specifications to identify any deviations.
Statistical analysis techniques, including Analysis of Variance (ANOVA), statistical process control (SPC), and Six Sigma methods, can be used to analyze collected data, identify important factors affecting tolerances, and optimize manufacturing processes, which are capable of identifying trends, changes, and potential sources of error in the production process.
In addition, computer aided design (CAD) and computer aided manufacturing (CAM) software tools play a crucial role in sheet metal tolerance analysis. CAD software allows designers to create virtual models of sheet metal parts and simulate the manufacturing process, which can be tested and evaluated for fit and function. By performing simulations with different tolerance levels, engineers can effectively study the impact of changes on the final product and predict potential problems that may arise during manufacturing. CAD software also helps to identify critical dimensions that require tighter tolerances than others, optimizing the overall design of manufactured parts.
Finally, the simulation software can also be used to perform finite element analysis (FEA) to analyze the structural and mechanical behavior of sheet metal parts. The analysis helps identify potential points of failure, areas prone to deformation, and guides tolerance decisions.
It is worth mentioning that in the process of sheet metal tolerance analysis, communication between the design team, the manufacturing team and the quality control personnel is crucial. Regular meetings and discussions help ensure that all parties meet the desired tolerances and that any design modifications or adjustments should be carefully evaluated, taking into account the impact on the manufacturing process and the functionality of the final product.
In summary, determining and analyzing sheet metal tolerances requires a thorough understanding of design requirements, manufacturing processes, and statistical analysis techniques. Engineers must carefully consider the functional requirements, material characteristics, and manufacturing capabilities of the part to establish appropriate tolerances. By taking these factors into account and utilizing measurement tools, statistical analysis, and simulation software, engineers can optimize the manufacturing process and ensure that high-quality sheet metal parts are produced that meet the required specifications and functions. At the same time, the processes of these analytical techniques, such as statistical analysis and CAD simulation, help to understand potential variations and sources of errors in the manufacturing process. Collaborative communication between design, manufacturing and quality control teams is important to ensure the successful implementation of sheet metal tolerances, and of course, the most important is the determination and analysis of sheet metal tolerances in precision manufacturing.

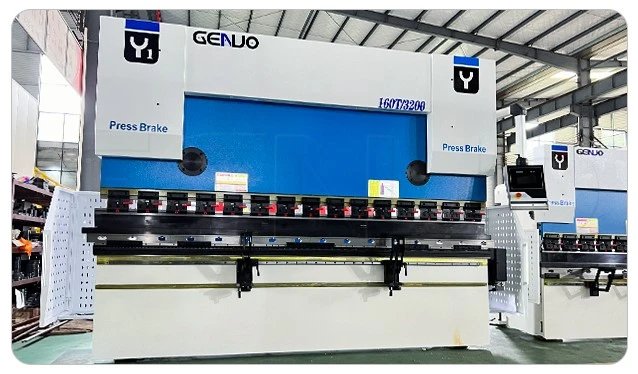

After knowing this, you can visit our website, if you need to learn more about CNC press brake machine knowledge or buy a machine, you can also consult our sales staff, they can recommend you the best smart press brake or other machine for you.
